EcoBag® Geotextile Slope Protection System Build Stable. Grow Green. Last Longer.Sustainable Vegetated Retaining Walls for Erosion Control & Aesthetic Landscaping

100개
MOQ
Inquire anytime
가격
EcoBag® Geotextile Slope Protection System Build Stable. Grow Green. Last Longer.Sustainable Vegetated Retaining Walls for Erosion Control & Aesthetic Landscaping
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
소재: 폴리 에스테르 섬유/폴리 프로필렌 섬유
종 방향 및 횡단 파손 강도: ≥4.5kn/m
파열 때 긴장: 40%~60%
두께: ≥0.6mm 이상
크기: 80mm x 50mm
기본 정보
원래 장소: 후난 중국
브랜드 이름: JIANYI
인증: CE&ISO
결제 및 배송 조건
배달 시간: 5-8workdays
지불 조건: T/T,L/C
공급 능력: 1200T/month
제품 설명

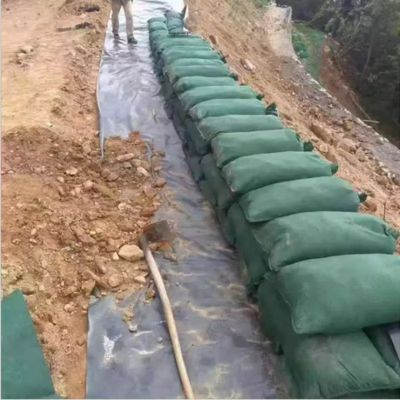

Transform unstable slopes into thriving green structures with EcoBag—a patented system combining high-strength geotextile bags, engineered soil infill, and integrated vegetation. Achieve natural stability with zero concrete, creating biodiverse habitats while preventing erosion.


Key Advantages Over Conventional Solutions

✅ Instant Slope Armorization

  • Deploys 70% faster than gabion walls or riprap

  • Walkable immediately after filling

✅ Self-Sustaining Vegetation

  • Pre-seeded bags germinate in 7–14 days (custom seed mixes available)

  • Root reinforcement increases strength by 300% over 24 months

✅ Superior Hydraulic Performance

  • Permeable structure prevents hydrostatic pressure buildup

  • Withstands flow velocities up to 15 ft/sec (4.5 m/s)

✅ Cost & Eco Savings

  • 40% lower installed cost vs. concrete walls

  • 100% recyclable polypropylene construction

  • Carbon-negative over lifecycle (removes 2.1 tCO₂e/100m²)


Technical Specifications

Parameter Performance Data Test Standard
Bag Material UV-stabilized PP geotextile ASTM D4355
Fabric Strength ≥ 25 kN/m tensile ASTM D4632
Bag Dimensions 20" x 30" (50x75cm) standard Custom sizes available
Fill Capacity 0.75 ft³ (21L) per bag ISO 9863
Design Slope Angle Up to 75° FHWA-NHI-00-043
Hydraulic Conductivity 0.2 cm/sec ASTM D4491
Vegetation Coverage ≥ 90% in 60 days ASTM D7328
Design Life 75+ years GRI-GT13

Engineered Applications
