Lightweight and Thin Three-Dimensional Composite Drainage Net with Excellent Chemical and UV Resistance

90m2
MOQ
0.96USD~3.44USD per sqm
가격
Lightweight and Thin Three-Dimensional Composite Drainage Net with Excellent Chemical and UV Resistance
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
색상: 검은색
내화학성: 훌륭한
너비: 2m-6m
자외선 저항: 훌륭한
길이: 50m-100m
인장강도: ≥16kN/m
무게: ≥200g/m2
어플리케이션: 매립지, 도로, 철도, 터널, 옹벽
강조하다:

Lightweight and Thin Drainage Geonet

,

Excellent Chemical Resistance Composite Drainage Geonet

,

Excellent UV Resistance Three-Dimensional Composite Drainage Net
기본 정보
원래 장소: 중국
브랜드 이름: JianYi
인증: ISO 9001 CE
모델 번호: 4mm-8mm
결제 및 배송 조건
배달 시간: 7~15일
지불 조건: l/c, d/p
공급 능력: 600t/month
제품 설명

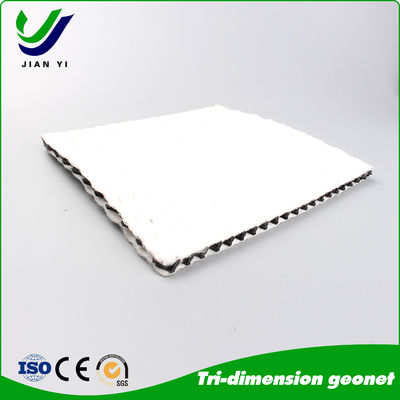

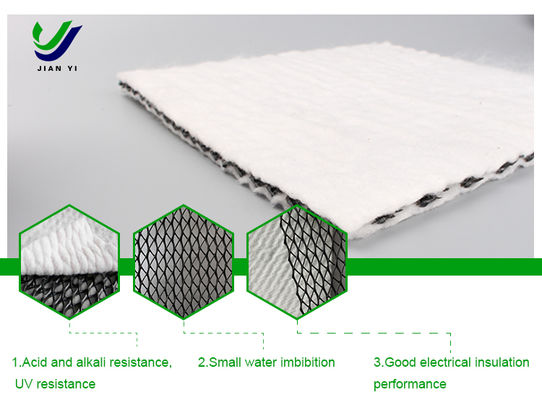

Three-Dimensional Composite Drainage Net
Lightweight and thin drainage material engineered for space-constrained applications
Product Overview
This innovative three-dimensional composite drainage net features a thin, high-strength mesh core combined with lightweight non-woven geotextile. With a minimal thickness of 3-5mm and weight under 200g/m², this solution optimizes construction space while reducing transportation and installation costs.
Key Specifications:
• Thickness: 3-5mm
• Weight: ≤ 200g/m²
• Excellent drainage performance in compact spaces
Product Features
  • Lightweight & Compact: Minimal thickness and weight ideal for narrow spaces and limited load capacity areas
  • Superior Flexibility: Easily folds and bends for installation on curved surfaces and irregular shapes
  • Efficient Drainage: High void ratio mesh core ensures optimal water flow for standard drainage requirements
  • Easy Installation: Cut to any size with standard scissors - no specialized tools required
Application Areas
Ideal for various drainage applications including:
  • Indoor floor and wall drainage systems
  • Roof drainage solutions
  • Small-scale garden and landscape drainage
  • Retrofit drainage for existing building renovations
Particularly suitable for projects with limited construction space and lower load requirements.
Installation Guidelines
  1. Surface Preparation: Thoroughly clean the base surface, removing all dust, debris, and oil stains. Ensure surface is flat and dry.
  2. Cutting & Placement: Cut drainage net to required dimensions. Lay on prepared surface with 10cm overlap between adjacent sections. Secure overlap areas manually.
  3. Secure Installation: Use eco-friendly adhesive for indoor applications; small plastic nails for outdoor projects (spacing: 20-25cm).
  4. Finishing: Cover with fine soil or decorative materials. For indoor use, directly apply floor tiles or other finishing materials over the surface.
